Directory Synchronization - Configuring Google Workspace

This article contains information on creating a custom administrator role in Google Workspace for Mimecast integration, including steps to configure roles, enable the Admin SDK, create a service account, authorize client IDs, and set up directory synchronization for secure management.

Only the Email Address and Full Name attributes are synchronized by default. Other attributes must be configured in the Google Workspace and Mimecast Administration Consoles first. Once a directory synchronization completes successfully, these attributes are displayed in Mimecast. The only attributes we can't support are multi-valued.

To configure a directory synchronization integration for Google Workspace, you must perform the following tasks:

• Create the Custom Administrator Role.
• Enable the Admin SDK.
• Create a Service Account.
• Authorize the Service Account's Client ID.

Once you've completed these steps, you must also configure the Mimecast Administration Console. See the Administration Console: Configuring Directory Synchronization for Google Workspace page for full details.

Creating the Custom Administrator Role

You'll need Super Administrator permissions to complete this step.

To configure the Google Administration Console:

1. Log in to the Google Admin Console.
2. Create a User that will be used for a Mimecast Service Account. See the Adding Users Individually page of the Google Workspace Administrator Help for full details.
3. Make a note of the User's Email Address. This is needed when creating a directory connector in step 5.
4. Create a Custom Administrator Role with "Read" access to the areas listed below. See the Creating Custom Administrator Roles page of the Google Workspace administrator help for full details.

• • • Organization Units
    • Users
    • Groups

5. Add the User created in step 3 to the Role. See the Assigning Administrator Roles to a User page of the Google Workspace administrator help for full details.

Enabling the Admin SDK

You'll need access to the API Console to complete this step.

To enable the admin SDK from the Google API console:

1. Log in to the Google API Console.
2. Create a Project. See the Creating a Project page in the Google Workspace Activity API technical documentation for further details.
3. On the API tile, click on Go to APIs overview.

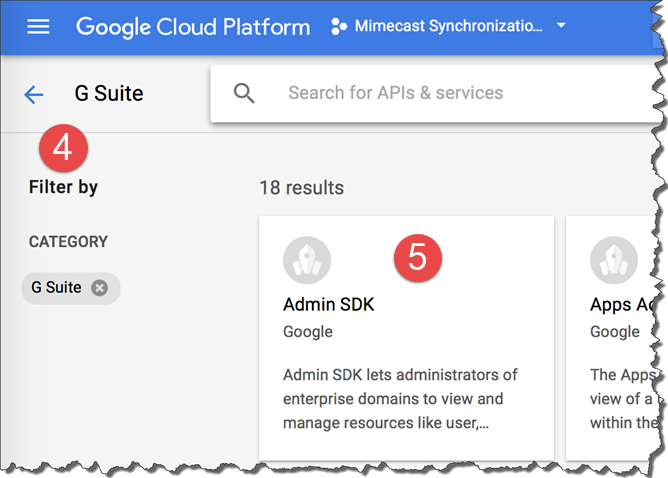

4. Click on the Enable APIs and Services button.

5. Select the Admin SDK API  tile.

6. Click the Enable button if it is not enabled.

Creating a Service Account

To create a service account from the Google API console:

1. Log in to the Google API Console.
2. Click on the Credentials menu item.
3. Click on the Create Credentials | Service Account menu item.

4. Complete the New Service Account dialog as follows:

Field / Option	Value
Service Account Name	Specify a name to identify the service account (e.g., Mimecast Directory Synchronization).
Service Account Id	This field is automatically populated using the project name and service account name.

5. Click on the Create and Continue button.

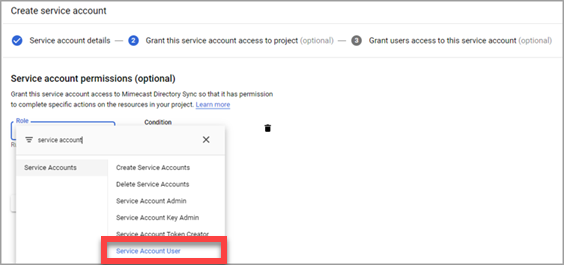

6. Select the Service Accounts | Service Account User role, then click Done.




The Grant users the permission to deploy jobs and VMs with this service account and Grant users the permission to administer this service account. Textboxes are not required and can be left unpopulated.

7. Select the created Service account and click on the Keys button in the Keys section.
8. Click the Add Key button, select Create New Key, and then select the JSON key type.
9. Click on the Create button and save the JSON file in a secure location.
10. From the Credentials menu item, click on Manage service accounts.
11. Navigate to the Service Account you've created.

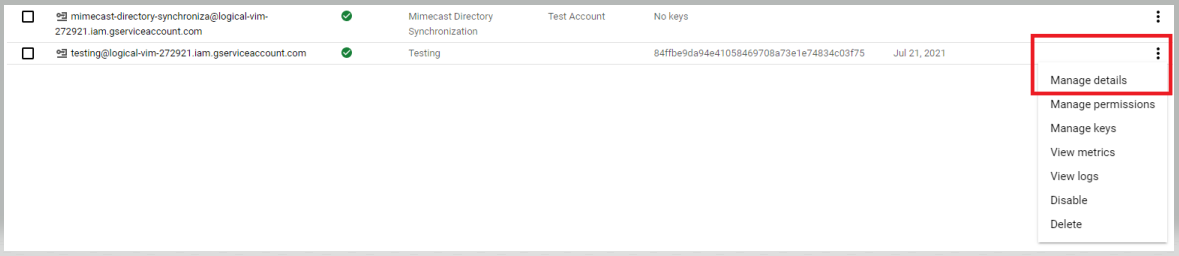

12. Click on the  icon.
13. Select the Manage Details menu item.

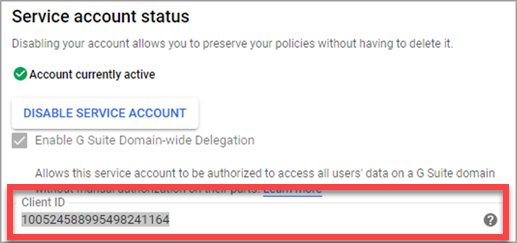

14. Select Show Domain Wide Delegation and select the Enable Google Workspace Domain-Wide Delegation option.
15. Click on Save.
16. Note the Client ID, as this is required in the next step.

Authorizing the Service Account's Client ID

Read the Authorizing GSMME for Your Domain page of the Google Workspace Administrator Help in conjunction with this step.

To authorize the service account's client ID:

1. Log in to the Google Admin Console.
2. Click on the Security menu item.
3. Expand Access and data control and click on the API Controls option.
4. Click on the Manage Domain Wide Delegation link.
5. Click on the Add New button.
6. Enter the Client Id from step 14 of the previous section.
7. Specify the following in the OAuth Scopes field in a comma-separated list.

https://www.googleapis.com/auth/admin.directory.user.readonly, https://www.googleapis.com/auth/admin.directory.group.readonly, https://www.googleapis.com/auth/admin.directory.orgunit.readonly

8. Click on the Authorize button.

Next Steps

You're ready to create a Directory Integration in Mimecast. See the Administration Console: Configuring Directory Synchronization for Google Workspace page for details.
