Exchange - ZorgMail Safe Relay Setup - Exchange On-Premises

This article is a guide on how to set up Mimecast to work with ZorgMail if you are using Exchange on-premises.

If you use Exchange on-premises, please read the documentation ZorgMail Safe Relay aansluitinstructies - Onpremise Exchange i.c.m. Spamfilters This article describes the settings you need to make on the Exchange server to communicate with a product like Mimecast.

Send messages based on X-Header

1. Log in to the Mimecast Administration Console.
2. Navigate to Policies | Gateway Policies | Content Examination | Definition.
3. Select the [Zorgmail – Content Definitions folder].
4. Click on New Content Definition.
5. Give the Content Definition a name – “ZorgMail - X-Header Controle”.
6. Set the Activation Score to 1.
7. Create a line in the Word/Phrase Match List : [1 “X-MS-Transport-Connect-To: ZorgMail”].
8. Select Scan Message Headers.
9. Enable Inbound and Outbound Check.



10. Select “ZorgMail – Outbound” as the Delivery Route option.
11. Select “ZorgMail – Secure Outbound” as Secure Delivery.

12. Click Save and Exit.

After creating the definition for the Content Examination a policy must be created to execute the definition.

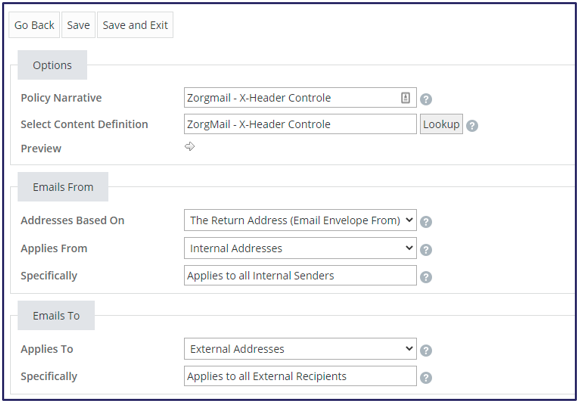

1. Navigate to Gateway Policies | Content Examination | Policy.
2. Click New Policy.
3. Give the Policy the name – “ZorgMail - X-Header Controle”.
4. Select “ZorgMail – X-Header Controle“ on the Select Content Definition option.
5. Set Applies From to Internal Addresses.
6. Set Applies To to External Addresses.

7. Click Save and Exit.

The configuration within Mimecast for ZorgMail is ready to be used.
