Aware 2.0 - Okta SAML 2.0

This article contains information on configuring Okta SAML 2.0 with Aware, including required customer-provided details, step-by-step setup instructions, and guidelines for completing the SSO integration.

The customer will need to provide the following information to Aware in order to complete the SSO integration.

• Identity Provider Single Sign-On URL
• X.509 Certificate

Identity Provider Single Sign-On URL and X.509 Certificate information will be generated at the end of this instruction.

1. Log in into your Okta Admin Dashboard
2. Go to Application > Create new App

3. In the Create a New Application Integration:

• • Platform: Web
  • Sign on method: SAML 2.0

4. You will now enter General Settings information for Aware app, provide the following:

• • App name: Aware
  • App logo: (optional)
  • App visibility: (optional)

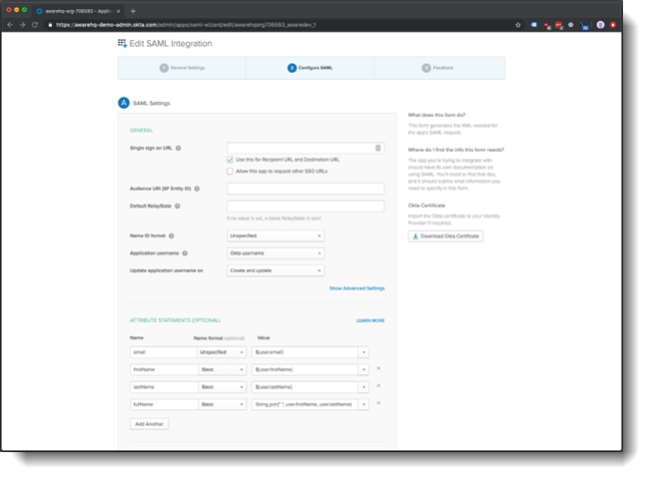

5. Enter SAML Settings information for Aware application, provide the following:

• • Single sign on URL: https://wiretap-prod.auth0.com/login/callback?connection=YOUR_DOMAIN_NAME
  • Audience URI (SP Entity ID): urn:auth0:wiretap-prod:YOUR_DOMAIN_NAME

Note

YOUR_DOMAIN_NAME value is usually your company email domain without .com. For example, our company domain awarehq.com the value will be awarehq (e.g. https://wiretap-prod.auth0.com/login/callback?connection=awarehq AND urn:auth0:wiretap-prod:awarehq). Check with your Customer Success Manager if you are unsure about what value you should use here.

6. You will also need to add the following Attribute Statement:

• • Name: email
  • Name Format: Unspecified
  • Value: ${user.email}

• • Name: firstName
  • Name Format: Basic
  • Value: ${user.firstName}

• • Name: lastName
  • Name Format: Basic
  • Value: ${user.lastName}

• • Name: fullName
  • Name Format: Basic
  • Value: String.join(" ", user.firstName, user.lastName)

7. You can validate provided settings are correct by click Preview the SAML Assertion to generate the output.

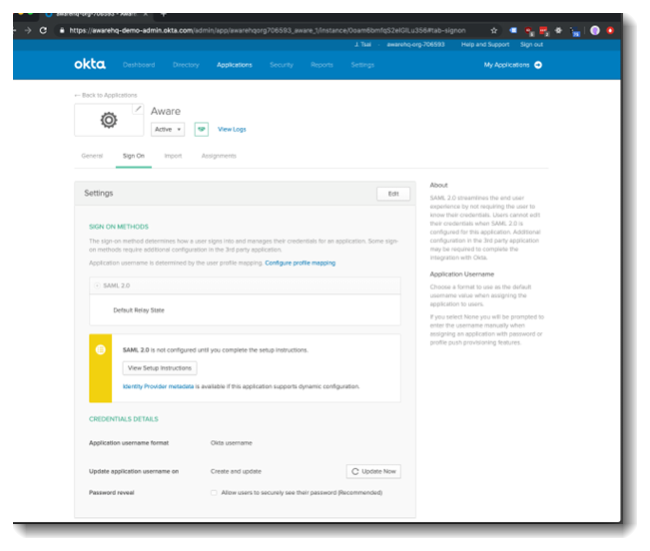

8. Okta will show Sign On page for the newly created Aware app. Click View Setup Instructions to complete the configuration.

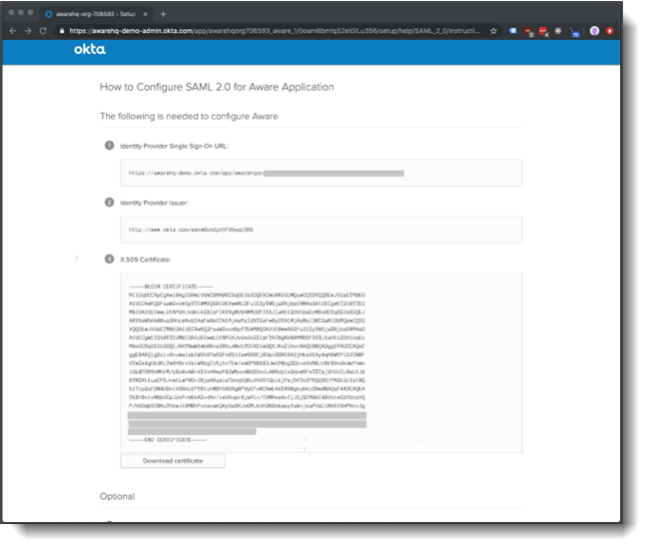

9. Copy Identify Provider Single Sign-On URL value and download a copy of the X.509 certificate.
10. Provide this information to your Aware Customer Success Manager to complete the SSO integration for Aware.
