Connect Incydr to Box

Overview

To help protect you from data loss, you can use Incydr to monitor files moving to and from your organization's Box cloud storage environment.

When you add Box as a data connection, you must authorize Incydr as a custom application. Once connected, we monitor your organization's Box environment to capture when a user:

• Creates or uploads a file
• Downloads a file
• Shares a link to a file
• Shares a file directly with users inside or outside your organization
• Deletes a file

This article explains how to add Box as a data connection.

Considerations

The following considerations apply to Box. See also the considerations applicable to all cloud storage environments.

• Incydr can connect to your Box environment only when supported by your Box product plan.
• Box allows you to add or remove individuals as collaborators on a file. However, for files that reside at the root of the drive and are not in a folder, these collaboration changes are not recorded until a file event occurs (for example, at file creation, modification, renaming, moving, or sharing with a link).
• Box limits API requests made by third-party integrations such as Incydr. Throttling these API requests allows Box to better control their resources, but may slow down Incydr file metadata collection, especially after first configuring access to Box. Consider setting up Incydr access to Box when you have decreased activity in your environment.
• Detection of folder sharing permissions changes in Box may be delayed.
• If a user's status is set to inactive in Box, Incydr does not monitor file activity on the user's Box account.

Monitoring and alerting tools may report download activity
When ongoing file activity is detected, Incydr temporarily streams files from your cloud storage or email service to the Incydr cloud to calculate the file hash. (Hash values are not calculated during the initial inventory process.)

This appears in your vendor logs as users downloading files. The requesting service's IP address may point to Microsoft Azure hosts. Consider adding these IP addresses to your allowlist to reduce false alerts in your vendor logs, keeping in mind that these addresses can change.

File contents are never stored or written to disk during this process.

A single file event in Forensic Search may represent more than one action in cloud storage
There's not always a strict one-to-one relationship between the actions a user takes on a file in your corporate cloud storage environment and the file event representing those actions in Incydr. After detecting activity, Incydr makes a best effort to interpret the user's actions on a file in cloud storage. Incydr may combine several of those actions into one file event to more efficiently and effectively display those details. For example, a user modifying a file repeatedly a few seconds apart in the cloud storage environment may appear as one "file modified" event in Forensic Search.

Throttling of API requests by the cloud storage vendor can also slow Incydr's metadata collection and affect how file events are displayed in Forensic Search. Both this throttling and Incydr's interpretation of actions can cause multiple actions in cloud storage to be displayed in fewer events in Forensic Search.

Before you begin

Before you authorize the Incydr connection to your Box environment, follow the directions in Configure Box for the Incydr data connection to properly set up Box to allow Incydr to collect data.

Authorize Incydr's connection to Box

Step 1: Connect Incydr to Box

1. Sign in to the Incydr console.

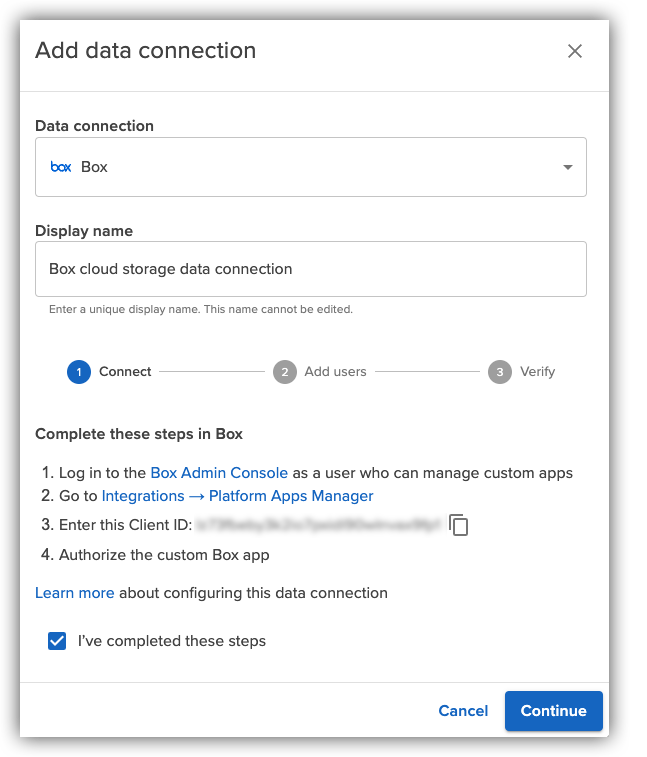

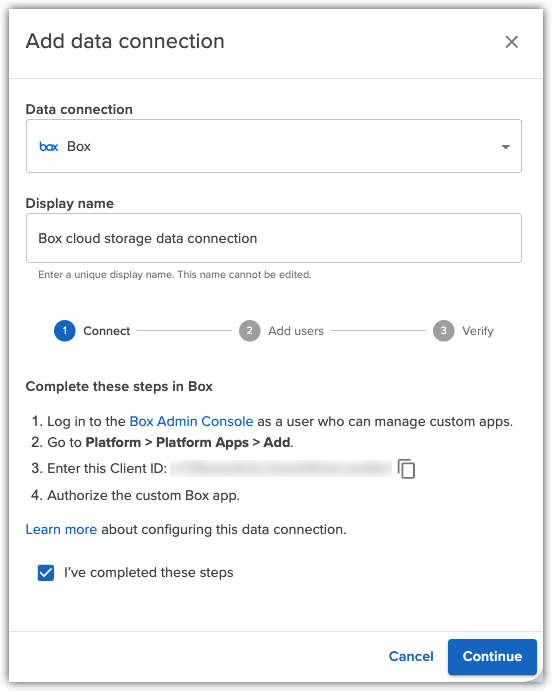

2. Add a cloud storage data connection:
   1. Select Administration > Integrations > Data Connections.
   2. Click Add data connection.
      The Add data connection panel opens.
   3. From Data connection, select Box under Cloud storage.
   4. Enter a display name. This display name must be unique.
   5. Under Complete these steps in Box, copy the Client ID. You enter this ID later in your Box Admin Console.

3. Authorize the Incydr app in Box:
   1. Go to your Box Admin Console and log in using your Box Admin username and password.
   2. Go to Integrations > Platform Apps Manager.
      The App Authorization screen displays.
   3. Paste in the Client ID from the Incydr console.
   4. Click Next.
   5. Review the permissions granted. For more information, see Permissions required for the Box connector.
   6. Click Authorize.
      Code42 Cloud Services appears in the table of custom applications.
   7. (Optional) If Disable published third party apps by default is selected in Global App Settings in your Box Admin Console, hover your mouse over the Code42 Cloud Services app, click the ellipses button, and select Authorize App to allow Incydr access to your Box environment.
      You can choose to disable third-party published applications to secure your Box environment. If you do so, you need to explicitly select and authorize the Code42 cloud service's access.

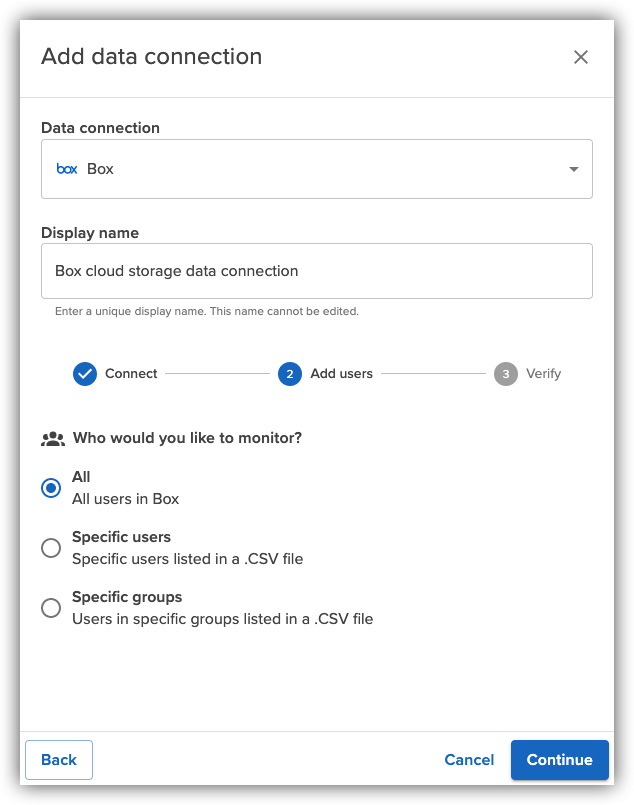

Step 2: Add users

1. Return to the Incydr console.
2. In the Add data connection panel, select I've completed these steps under Complete these steps in Box and then click Continue.
   The Add users panel displays.

3. Select one of the following options:
   • All: Monitors all Box users in your environment.
   • Specific users: Monitors only the Box users you designate.
     1. Click Upload .CSV file.
     2. Select a .csv file containing a list of only those users you want to monitor.
   • Specific groups: Monitors only the users in Box groups you designate.
     1. Click Upload .CSV file.
     2. Select a .csv file containing a list of those groups in Box whose users you want to monitor.

Step 3: Verify the setup

1. After selecting the users to monitor (and uploading a file, if needed), click Continue.
   The Verify panel displays.

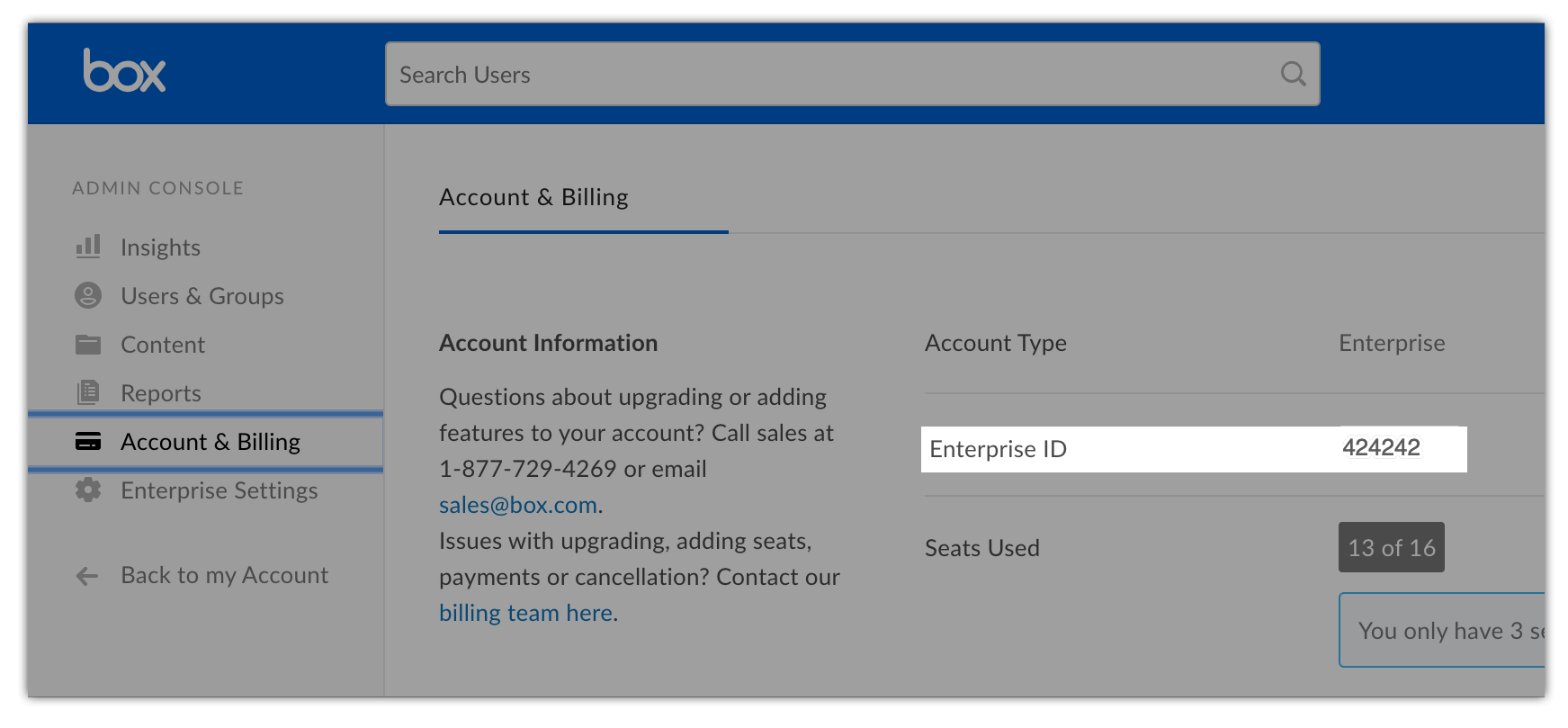

2. Locate your Box Enterprise ID:
   1. Return to the Box Admin Console and select Account & Billing.
   2. Copy the Enterprise ID.


3. Return to the Incydr console and enter your Box Enterprise ID and Box Admin username:
   1. Paste the Box Enterprise ID into Box Enterprise ID.
   2. Enter the email address you use to log into the Box Admin Console into Box Admin username.
4. Click Authorize.
   Box is added as a data connection, and Incydr begins the initial inventory process.

Next steps

Once you have added Box as a data connection, learn more about:

• Common use cases for investigating security incidents with Forensic Search
• How to use Forensic Search
• Adding trusted domains to easily identify when files are shared with users not on your list of approved domains.
• Viewing and managing a cloud storage file's sharing permissions

Troubleshooting

Issues in your Box environment can cause errors with the Incydr connection. When such issues occur, the Box connection in the Data Connections table is highlighted in red and an error message is displayed at the top of the screen. When this occurs, click the Box connection in the Data Connections table. The detail panel opens and lists the specific error so that you can resolve it.

Refer to these articles to troubleshoot specific errors that can appear for the Box connection in the Data Connections list:

• Resolve maximum user drives exceeded errors
• Configure security policies in Box Shield to resolve the error of no Box file activity reported in the Incydr console
• Reconfigure scoping for user and group monitoring
